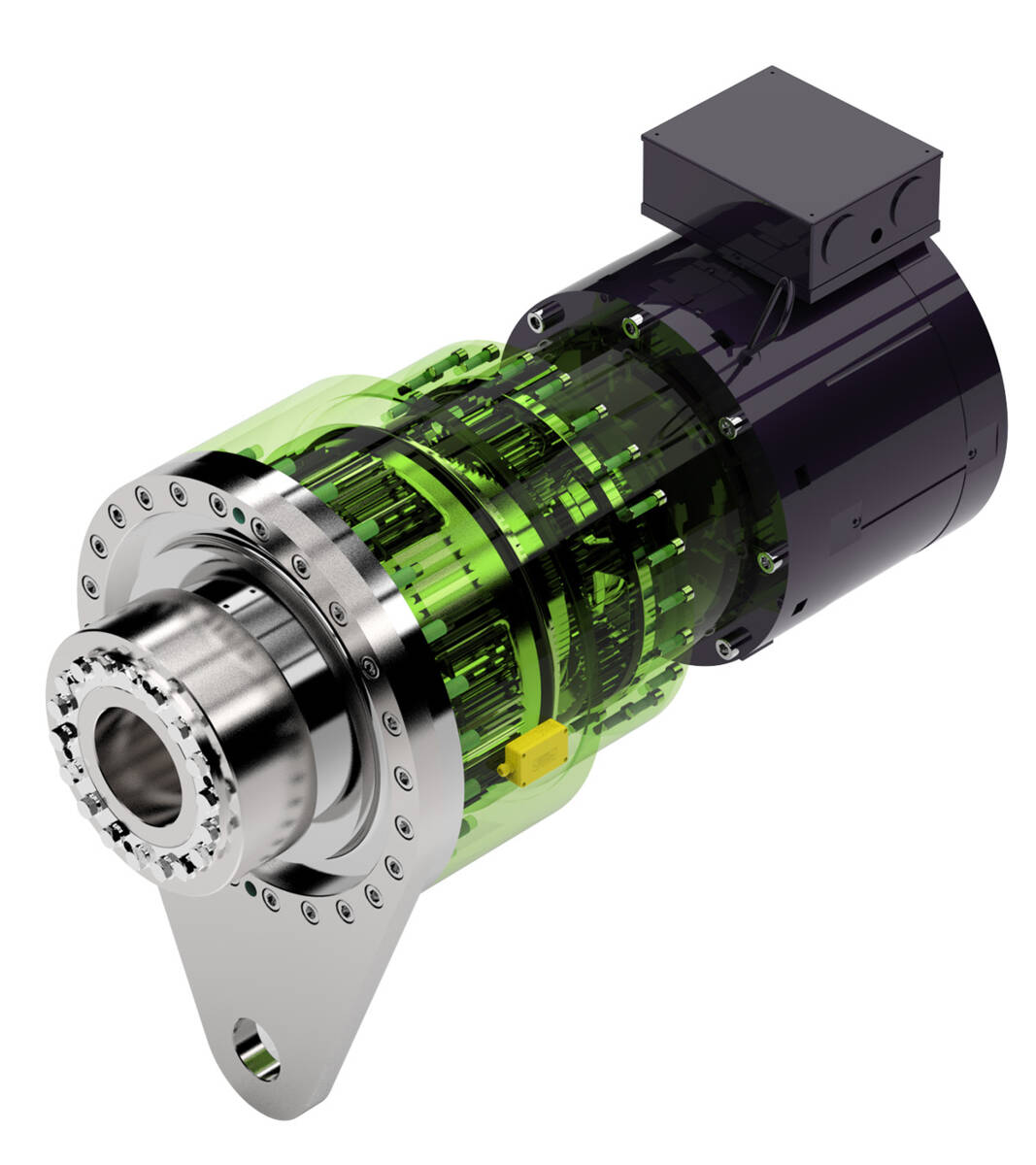

Tevox® Direct Drive
DESCH Tevox® Direct Drive - the new energy-efficient drive solution compared to electric hydraulic drive concepts for mobile and stationary systems with a special focus on recycling applications:
- System solution consisting of gearbox + clutch + electric motor
- Modular design with various gear ratios and mounting and connection options
- Wide output torque range from 10kNm up to 400kNm
- Single-stage or multi-stage planetary gearbox
- Energy-efficient drive solution / electric drive train
- Designed for applications with high alternating loads
- Protection of the drive train by integrated overload clutch
- Continuous torque measurement - DESCHtorque
- Direct replacement of electro-hydraulic drive train
Technical details
1- or multi-stage planetary gearboxes
Output torque T = 10 - 400 kNm
Output speed n = 3 - 200 rpm
Wear-resistant torque limiting clutch
For protection against shock torques by use of defined slipping torques
Connections
Shrink disc connection in combination with torque arm
alternatively flange connection combined with spline or shamrock shaft
DESCH Tevox® Direct drive - made by DESCH!
